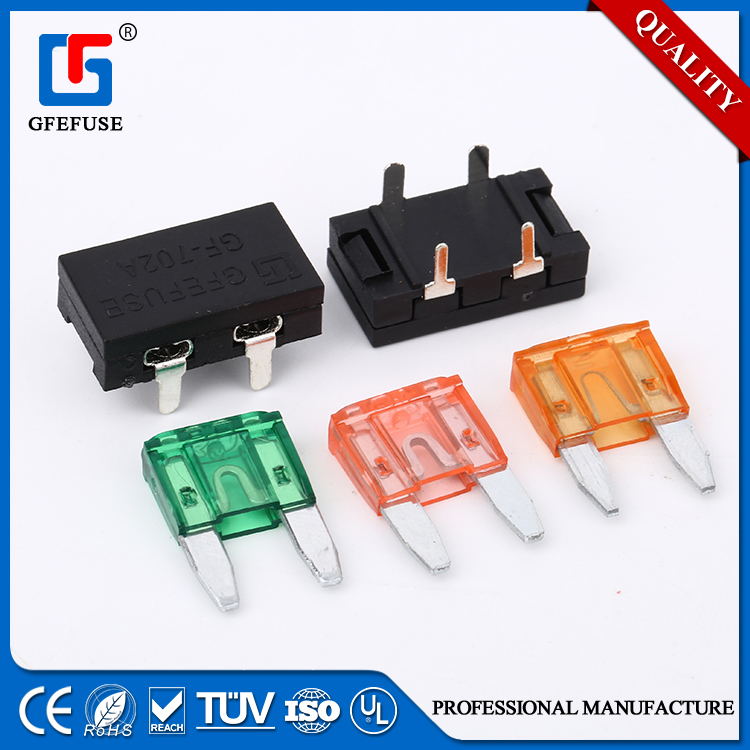

汽車插片保險(xiǎn)絲座www.jcprgie.cn

1.material: Contacts--brass, T=0.3mm;  Base: PBT UL-94V0

2.terminal finish: Tin plated;

3.Matching mini-car insert fuses (GFEFUSE? GF-C series insert mini-fuses)

4.Suitable rated current: 30A@500VAC.

5.Insertion and extraction force: 1Kg Min.

6.Dielectric Strength: Min.AC1000V.

7.Contact Resistance: Max 50mΩ

8.temperature rise: 130° Max.

9.Insluation Resistence At 500V DC: 100mΩ

10.Welding temperature: 260 ℃ 3 seconds

Attention: Product size changes are not notified

[附件: Download]
