歡迎來到- 東莞市貢福電子有限公司 的官方網站， 汽車熔斷器、保險絲、電流保險絲、保險絲座！
提供標準及特殊規格的電路保護元件本公司產品可廣泛應用于各電力設備領域的運用
全國銷售與服務熱線
0769 - 8239 1938
產品展示當前位置：首頁 > 產品展示
GFEVT1000-74E高速熔斷器315A-1400A 1000Vdc


[附件: Download]

Dimensions (mm)

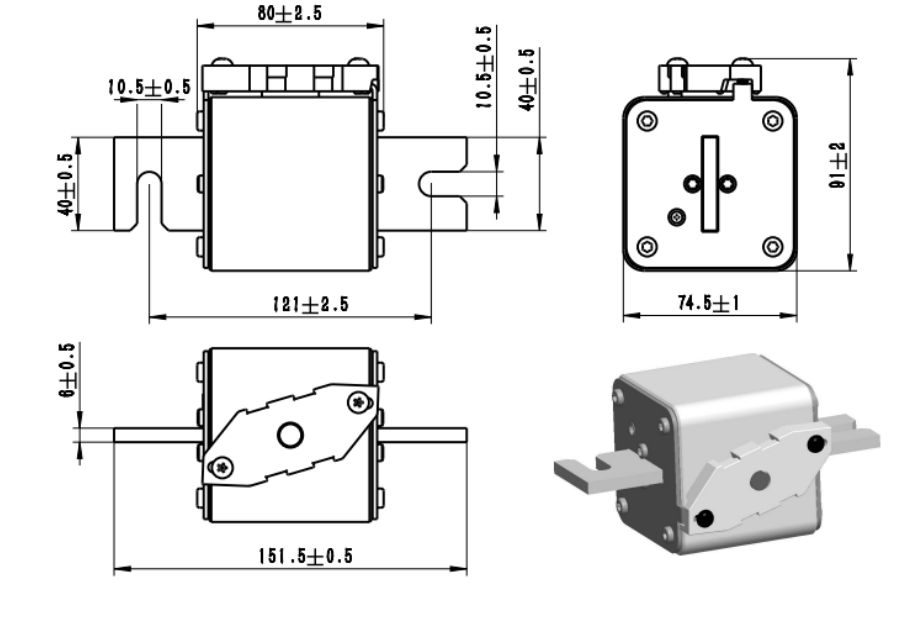

Bolted xxxB-74E Dimensions

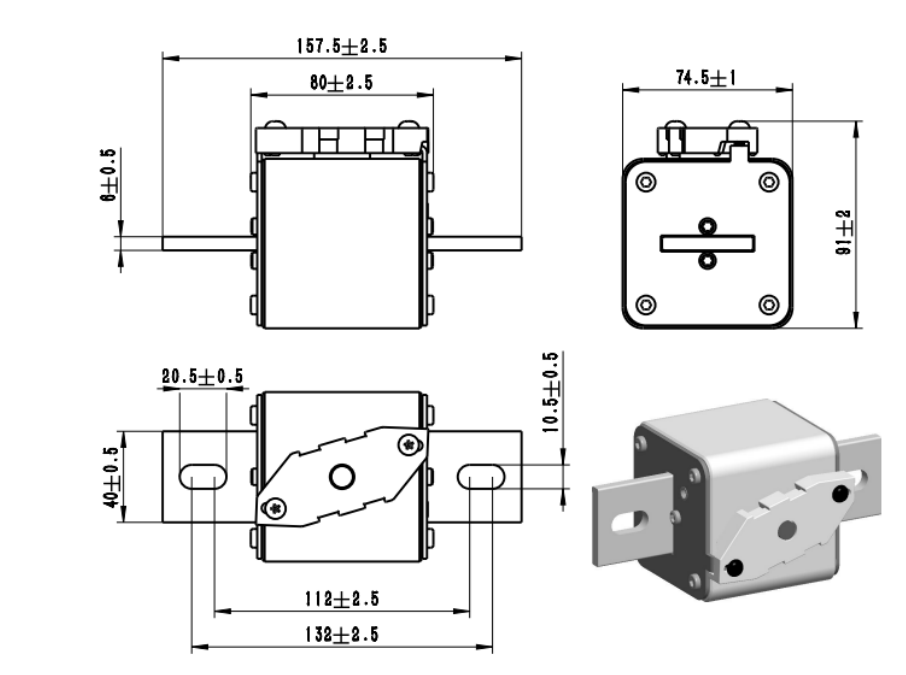

Custom xxxB-74E Dimensions

Description



  • Design For DC Applications
  • Excellent DC Performance
  • Superior Cycling Capability
  • Low Watt Losses

Standards / Approvals

  • Refer To: UL 248.1 / UL 248.13
  • IEC: 60269.1 / 60269.4
  • Reach Declaration Available Upon Request
  • RoHS Compliant

Features & Benefits

  • Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage.
  • Up to ten times faster opening under high fault current conditions helps assure reliable protection of circuits and components.
  • Greater ampacity within sizing guidelines.
  • Excellent power of resisting voltaic impingement and environmental temperature tolerance.
  • Excellent resistance to mechanical vibration and impact resistance.

Fuse Ratings

Connect Part No. Fuse Amps Size Average @50KA/1000Vdc Power Loss (W) Approvals
A2s Melting A2t Clearing 100% ROHS REACH
Bolted GFEVT1000-315B-74E 315A 3# 8,550 48,500 120 ● ●
GFEVT1000-350B-74E 350A 3# 12,150 68,640 125 ● ●
GFEVT1000-400B-74E 400A 3# 17,550 99,150 133 ● ●
GFEVT1000-450B-74E 450A 3# 27,900 157,600 145 ● ●
GFEVT1000-500B-74E 500A 3# 35,100 198,315 155 ● ●
GFEVT1000-550B-74E 550A 3# 49,500 279,675 163 ● ●
GFEVT1000-630B-74E 630A 3# 75,150 424,600 172 ● ●
GFEVT1000-700B-74E 700A 3# 103,500 625,700 185 ● ●
GFEVT1000-800B-74E 800A 3# 185,500 1,001,700 195 ● ●
GFEVT1000-900B-74E 900A 3# 274,500 1,454,850 203 ○ ○
GFEVT1000-1000B-74E 1000A 3# 405,000 2,126,500 210 ○ ○
GFEVT1000-1100B-74E 1100A 3# 517,500 2,696,500 225 ○ ○
* GFEVT1000-1250B-74E * 1250A 3# 729,000 3,717,900 240 ○ ○
* GFEVT1000-1400B-74E * 1400A 3# 1,125,000 5,512,500 265 ○ ○
Connect Part No. Fuse Amps Size Average @50KA/1000Vdc Power Loss (W) Approvals
A2s Melting A2t Clearing 100% ROHS REACH
Customize GFEVT1000-315K-74E 315A 3# 8,550 48,500 120 ● ●
GFEVT1000-350K-74E 350A 3# 12,150 68,640 125 ● ●
GFEVT1000-400K-74E 400A 3# 17,550 99,150 133 ● ●
GFEVT1000-450K-74E 450A 3# 27,900 157,600 145 ● ●
GFEVT1000-500K-74E 500A 3# 35,100 198,315 155 ● ●
GFEVT1000-550K-74E 550A 3# 49,500 279,675 163 ● ●
GFEVT1000-630K-74E 630A 3# 75,150 424,600 172 ● ●
GFEVT1000-700K-74E 700A 3# 103,500 625,700 185 ● ●
GFEVT1000-800K-74E 800A 3# 185,500 1,001,700 195 ● ●
GFEVT1000-900K-74E 900A 3# 274,500 1,454,850 203 ○ ○
GFEVT1000-1000K-74E 1000A 3# 405,000 2,126,500 210 ○ ○
GFEVT1000-1100K-74E 1100A 3# 517,500 2,696,500 225 ○ ○
* GFEVT1000-1250K-74E * 1250A 3# 729,000 3,717,900 240 ○ ○
* GFEVT1000-1400K-74E * 1400A 3# 1,125,000 5,512,500 265 ○ ○
